MARKER PLANING
Marker is a long, sparse newspaper that contains all necessary pattern pieces for different garment sizes. It is designed in such a way that textile wastage is minimized.
For more information regarding markers, plotting, digitizing, and grading, please refer to the relevant page in the menu.
Marker Planning
Creating a marker can help maximize benefits by producing garments with reduced fabric waste. Typically, the width of a marker is determined by the cuttable width of the fabric, while the length of the marker depends on the number and sizes of the patterns arranged on it. Additionally, the length is influenced by the release and the dimensions of the patterns included.
The length of the marker depends on several factors:
-
- The number of garments to be produced from a spread lay
-
- The length of the cutting table
-
-Production planning, etc.
For marker making, white newspaper or newsprint is typically used. Initially, all large patterns are placed on the marker. After that, smaller patterns are positioned in the gaps between the large patterns. This approach helps achieve higher marking efficiency. To create a marker that enhances efficiency, an effective marker maker is essential.
**
Objectives of this Study:**
1.
-
To minimize textile use while creating garments that ensure profitable brand manufacturing.
-
2. To efficiently cut substantial amounts of textile in a short time frame.
-
To accurately calculate textile consumption for detailed styles.
-
To reduce the workforce required for cutting large amounts of textile.
-
5. To ensure precise cutting of the textile according to measurements.
-
To develop a flawless production plan.
Points to Consider Before Implementation:**Consider Before Implementation:**
**Requirements for Mark Planning:**
1. The fabric width must be greater than the mark width.
2. The fabric length must be greater than the mark length.
3. When placing pattern pieces downwards on the fabric layer, ensure that the grain direction is parallel to the warp direction in woven fabrics and to the wales in knit fabrics. When pattern pieces are set across the fabric layer, the grain direction should be parallel to the weft/course.
4. All pattern pieces of a garment should be oriented in the same direction when placed on asymmetric fabric.
5. The length of the cutting table must be taken into consideration.
For effective marketing planning, it is essential to ensure the following:
-
One should be able to easily determine the total length.
-
To determine the appropriate width of the fabric accurately.
-
The mark should start with the larger pattern pieces. Then, fit the smaller pieces into the gaps of the larger pieces. This approach minimizes textile wastage and increases efficiency. (It is a mutual technique.)
-
The patterns are shuffled inward in various directions to shorten the mark length and improve mark efficiency.
Requirements for Mark Planning:
Marker planning is primarily a creative and intuitive conceptualizing process rather than a purely technical one. There is no final, definitive result when it comes to marker planning. The main goal is to create the shortest marker possible while taking into account all practical and technical constraints. These constraints involved in creating the shortest marker are related to various factors.
-
Fabric characteristics, along with the blueprint requirements for the finished garment, cutting details, and production planning.
"Fabric features, along with the specifications outlined in the blueprint, should be incorporated into the finished garment."
1.The alignment of patterns with respect to the textile grain is important. All patterns within the design should be arranged so that the grain of the fabric runs parallel to the textile selvage. This ensures better hanging and draping of the garments.
2. Fabric symmetry and asymmetry play a significant role in design planning. Fabrics that have a similar appearance on both the front and back sides are referred to as "two-way" or "symmetrical" fabrics. These fabrics do not require any special considerations during pattern planning.
On the other hand, asymmetric fabrics, which display different patterns or textures on the front and back, need careful attention in design planning. Examples of asymmetric fabrics include those with a nap or pile. More complex fabrics that are deemed "one-way" or "asymmetrical" feature a surface pile or a printed design that has a distinct orientation and can only be used in one direction.
3. Design Requirements for Garments
When planning the design of garments, it is essential to consider the design aspects to enhance the visual appearance of the finished product. For example, if a garment features a vertical stripe, it is important for the stripes to align properly on both the right and left panels. If they do not match, it creates an awkward look.
Methods of Marker Planning:
-
Markers in live productions can be made using either i) Manual methods or ii) Computerized methods. In our clothing lab, we performed manual methods.
Manual mark planning:
The conventional marker planning method is still commonly used in the garment industry, where individual garment markers are created. The marker planner works by moving the full-size patterns around until an acceptable marker design is achieved. Multiple copies of the marker are usually required, which are typically produced by reproducing the master copy using various duplication methods.
-
In this method, all patterns are inward total dimension according to measurement.
-
Hard patterns are placed on newspaper or textile together, thus all patterns are marked past times turning different management to minimize the textile usage.
-
The tables, on which the markers are placed, are arranged inward such an agency thence that they exercise no tilt.
The efficiency of a marker:
Marker efficiency refers to textile utilization together with is defined equally as the percentage of the total textile that is genuinely utilized inward garment components. It depends on how closely the patterns are arranged inwards the marker; that is, the length of the marker. The mark efficiency is defined past times the formula equally given below:
Area of patterns inwards the mark excogitation
Marker Efficiency (%) = ------------------------------------------------------------
The total expanse of the mark
The influencing factors for the marking efficiency are characteristics of the fabric and profile/shape of the pattern pieces with grain requirements.
Conclusion:
In this experiment efficient mark planning is done without whatever experimental error. Using the lowest degree amount of textile to create a garment together with brand Industry profitable every fourth dimension Nosotros cause got to know the mark planning. This experiment was done carefully.
MARKER MAKING
Apparel marker planning or auto nesting service
Achieve 1 - 5 % fabric savings compared with manual nesting
In most garments, the cost of materials used accounts for about 70 % of the cost of the garment and every inch saved reflects directly on your bottom line. Not only does the marker maker have to place the patterns optimally on the fabric but has to also take into consideration the limitations of the fabrics and design requirements of the garment like plaid matching, metering, chevroning, etc. Every cutting room parameter, as well as fabric characteristics, have to be accounted for while arriving at the optimal marker.
Our marker makers have the required experience to help you achieve substantial savings in your cutting room.
Marketing teams can use our quick costing/consumption calculation services to cost garments accurately.
Auto Nesting & Marker Making
Helps you bring down fabric wastage and quote accurate prices to acquire clients:
MARKER MAKING
-
Marker making is the economical consumption of the material. Because material savings are a fundamental factor for every apparel firm, we have spent the time to develop solutions that apply state-of-the-art technology for material optimization. We offer a fast and efficient marker-making service with both plain and matched fabrics.
-
Our marker-making provides an additional opportunity for better control of the different phases of the process while maintaining maximum efficiency.
-
We can use the previously graded pattern or the customer will provide a digitized copy of the style.
-
Once your pattern has been entered into our system, we can produce highly efficient markers according to your Marker Order Specification.
-
We place the pattern pieces on a marker with all the notes, details, and indicating the grain line. We ensure that each piece is positioned for optimized fabric usage, maximizing productivity and minimizing labor and material loss.
-
Our marker maker takes the graded patterns and traces them onto paper, making a layout plan or roadmap to the cut of the style. The goal is to use the least amount of fabric possible while keeping grain lines and match stripes aligned properly. Our marker makers carefully plan the placement of pieces and keep in mind the needs of the cutting department. Using the approved graded patterns we will make highly efficient based on your order, which will reduce fabric costs, increasing your profit margins. We will consider your requirements regarding shrinkage, the kinds of fabric-plaid or stripe, block buffer, and block fuse.
-
We provide you with a high economy of materials by the arrangement of patterns in marker with an extremely small percentage of waste materials. We will comply with your requirements for fusing elements of block paving, the way of paving and putting up, shrinkage of the material, as well as the requirements for meeting details in the fabric of plaid or striped. The finished markers can be drawn in real size on a plotter or a printer as mini markers.
-
They can be written in HPGL plotter format and sent over the Internet to be drawn with a plotter to another location, or to be written in a CUT file for all automatic machines for cutting There are several benefits to having your markers produced using our service: Improved efficiency will reduce fabric costs; Electronic markers may be sent via email to avoid costly shipping charges and reduce delivery time; If recruits are necessary, the markers are readily available for reprinting; We can save your markers in our database if cut a new or changes are necessary.
What is Marker Making?
-
Marking refers to the process of placing pattern pieces to maximize the number of patterns that can be cut out of a given piece of fabric to make garments. Pattern-making is a highly skilled technique that calls for technical ability, sensitivity for design interpretation, and a practical understanding of the process technology used by the factory.
-
Once the pattern is graded, the fabric must be prepared for cutting. To spread the fabric properly, the spreader must know how the pattern pieces will be placed on the fabric. “Marking” refers to the process of placing pattern pieces to maximize the number of patterns that can be cut out of a given piece of fabric. Firms strive for “tight” markers mainly because the fabric is one of a manufacturer’s most significant business costs, often exceeding the cost of labor. Although markers can be made by hand or using CAD software, the computerized method is up to eight times faster.
-
-

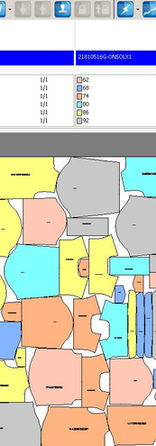

Once a marker is completed, a CAD system can use a plotter to print a full-size layout on a long sheet of paper. This layout becomes the guide for the cutter. Computer software helps the technicians create the optimum fabric layout so the fabric can be used efficiently. Markers, made following the patterns are attached to the fabric with the help of adhesive stripping or staples. Markers are laid in such a way that the minimum possible fabric gets wasted during the cutting operation. After marking the garment manufacturer will get an idea of how much fabric he has to order in advance for the construction of garments. Therefore careful execution is essential in this step. Revoke cookies Computer marking is done on specialized software. In computerized marking there is no need for large paper sheets for calculating the yardage mathematical calculations are made instead to know how much fabric is required. Not every marking is on every pattern because some are specific to a certain style or construction technique. Layout and cutting markings don’t need to be transferred to the fabric. Construction markings, on the other hand, are very helpful during the sewing process, and transferring them to the fabric is a good idea.
To make a perfect production plan. Points to be considered before Marker Making
-
Fabric width must be higher than the marker width (1/2+1/2″”) Fabric length must be higher than the marker length(1”+1”)
-
When the pattern pieces are laid down on the layer of fabric, the grainline should be parallel to the line of the warp in a woven fabric and wales in a knit fabric. Where pattern pieces are laid across the layer, the grainline is kept parallel to the weft/course.
-
All the pattern pieces of a garment should be in the same direction when laid down on an asymmetric fabric.
-
The length of the cutting table should be considered.
-
The plan for garment production should also be considered.
For efficient marker planning, it is required to ensure the following things:
-
One should easily see the full length. ( Applicable for manual marker making)
-
To know about the appropriate width/ Cuttable width of the fabric.
-
The marker starts with the large pattern pieces. Then fit the smaller pieces in the gap of the larger pieces. Thus the fabric wastage is minimized and efficiency is increased. (It is the common technique
-
After that, the patterns are shuffled in various directions to reduce the marker length. It also helps to increase marker efficiency
